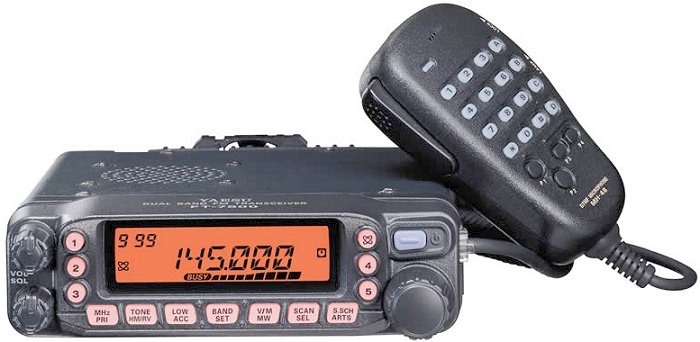

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz (Europe) RX: 108-1000 MHz |
| Mode: | FM |
| RF Power output: | Hi: 50/40 W Mid1: 20/20 W Mid2: 10/10 W Lo: 5/5 W |
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB), 30 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 200-450 mA TX: Max 8.5 A |
| Impedance: | 50 ohms, N-type |
| Dimensions (W*H*D): | 140*42*168 mm |
| Weight: | 1 Kg |
| Manufactured: | 2003-200x |
| Other: | Wires and 1200/9600 baud packet ready. |
 FT-7800 - user manual | 2896 kB |
| FT-7800R - service manual | 3434 kB |
| FT-7800 - manuale utente italiano | 2082 kB |
 FT-7800 - mod | 1224 kB |
| FT-7800 - schematic diagram | 4068 kB |
