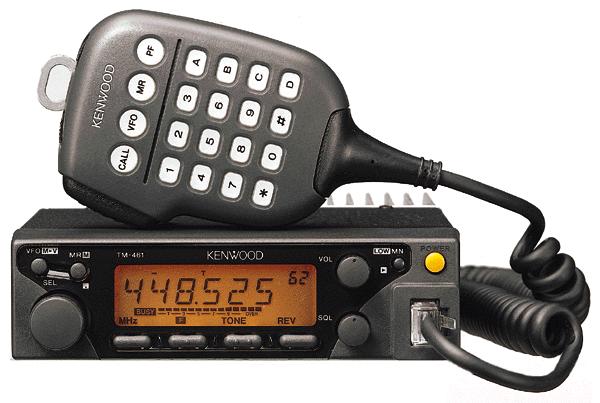

| Type: | Amateur UHF transceiver |
| Frequency range: | TX: 430-440 MHz (General) TX: 438-450 MHz (USA & Canada) RX: 400-470 MHz |
| Mode: | FM |
| RF Power output: | Hi: 35 W Mid: 10 W Lo: 5 W |
| Receiver system: | N/A |
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | >12 KHz (-6 dB), <28 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC +/- 15% |
| Current drain: | RX: Max 600 mA TX: Max 10 A |
| Impedance: | 50 ohms, N-type |
| Dimensions (W*H*D): | 140*40*160 mm |
| Weight: | 1 Kg |
| Manufactured: | 199x-199x (Discontinued) |
| Other: | 61 memories |
 TM-461_user_manual.pdf | 2712 kB |
