tr-7200g

Ricetrasmettitore veicolare VHF FM



Type: Amateur VHF transceiver
Frequency range: 144-146 MHz
Mode: FM
RF Power output: Hi: 10 W
Lo: 1 W
Receiver system: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current drain: RX: 500 mA (no input)
TX: Max 3 A
Impedance: 50 ohms, SO-239
Dimensions (W*H*D): 180*60*240 mm
Weight: 2.5 Kg
Manufactured: 197x-19xx (Discontinued)
Other: 22 channels. XTAL
New price 1974 in Sweden: 1500:- SEK

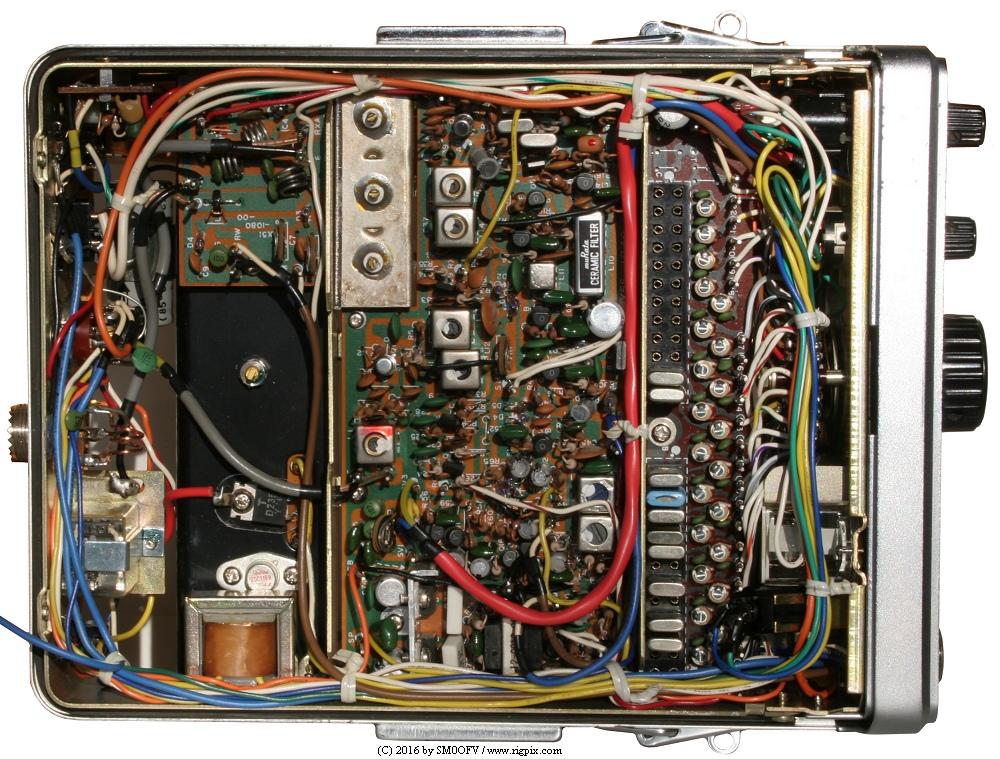

tr7200g insidebottom

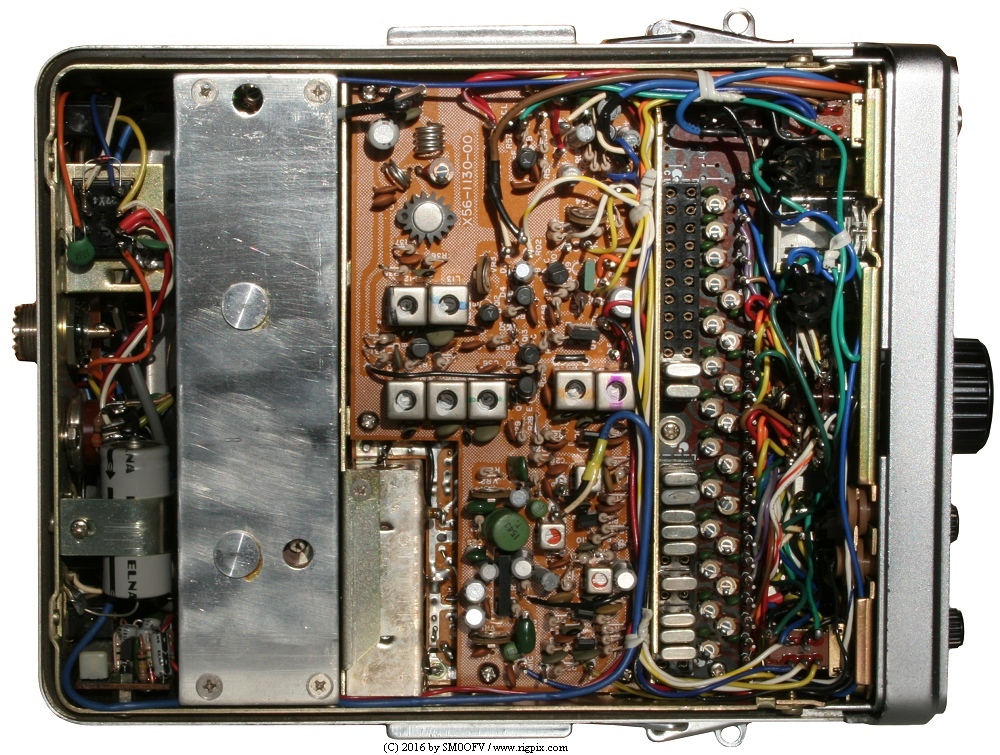

tr7200g insidetop

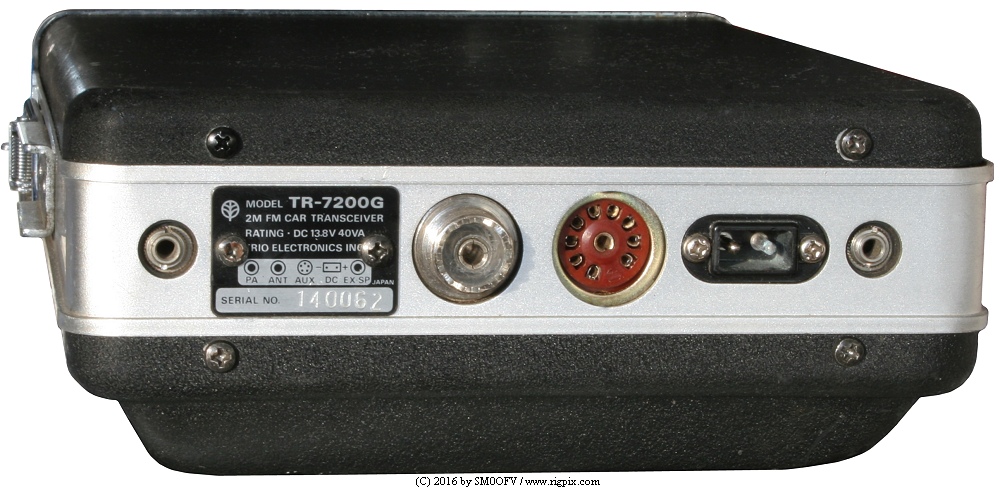

tr7200g back
