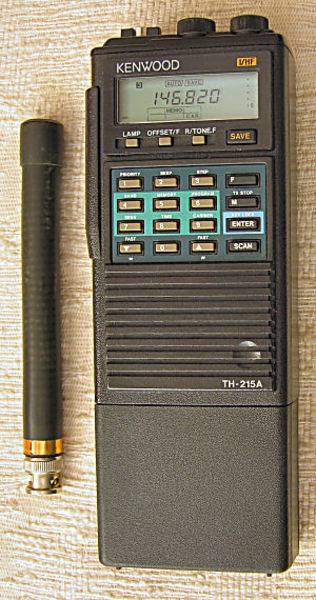

TH-215

Type: Amateur VHF transceiver
Frequency range: 144-146 MHz
Mode: FM
RF Power output: Hi: Max 5 W (depending on voltage)
Lo: 0.5 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 6.3-16 VDC
Current drain: Rx: 11-100 mA
Tx: Max 1.7 A
Impedance: 50 ohms, BNC
Dimensions (W*H*D): 67*173*37 mm
Weight: 540 gr (with PB-2 and antenna)
Manufactured: 1987-19xx (Discontinued)
Allegati:
Scarica questo file (TH-215_315_415_user_manual.pdf)TH-215_315_415_user_manual.pdf12548 kB
