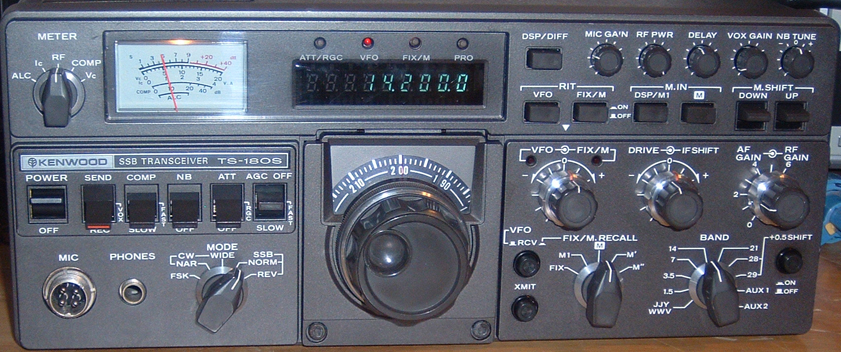

TS-180S - Ricetrasmettitore HF SSB, CW, FSK
| Type: | Amateur HF transceiver |
| Frequency range: | 10-160 m (WARC option) |
| Mode: | SSB/CW/FSK |
| RF Power output: | Max 100 W |
| Receiver system: | Single conversion superheterodyne IF: 8.830 MHz |
| Sensitivity: | 0.25 uV S+N/N or more |
| Selectivity: | SSB/CW wide: 2.4 KHz (-6 dB), 4.2 KHz (-60 dB) FSK/CW narrow with YK-88C: 0.5 KHz (-6 dB), 1.8 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 11-16 VDC (13.8 VDC nominal) |
| Current drain: | RX: 1.2-1.6 A TX: Max 20 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 325*133*287 mm |
| Weight: | 11.5 Kg |
| Manufactured: | Japan, 1979-198x (Discontinued) |
 TS-180S_modifiche.zip | 1307 kB |
 TS-180S_schematic_diagram.pdf | 3610 kB |
| TS-180S_service_manual.pdf | 34707 kB |
| TS-180_user_manual.pdf | 45579 kB |
