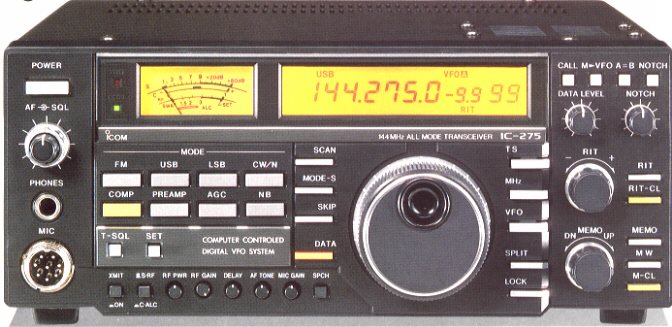

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz RX: 138-174 MHz |
| Mode: | FM/SSB/CW |
| RF Power output: | 2.5-25 W |
| Receiver system: | N/A |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC or mains |
| Current drain: | RX: 0.9-1 A TX: Max 6 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 241*95*239 mm |
| Weight: | 6.2 Kg |
| Manufactured: | Japan, 1987-199x (Discontinued) |
| Other: | 99 memories. CI-V New price 1988 in Sweden: 10995:- SEK |
 IC-275H_pcb.pdf | 202 kB |
| IC-275H_schematic_diagram.pdf | 8736 kB |
| IC-275_manuale_utente_italiano.pdf | 5911 kB |
 IC-275_modifications.zip | 271 kB |
| IC-275_service_manual.pdf | 8353 kB |
| IC2-75H_block_diagram.pdf | 628 kB |
| IC_275_user_manual.pdf | 5696 kB |
