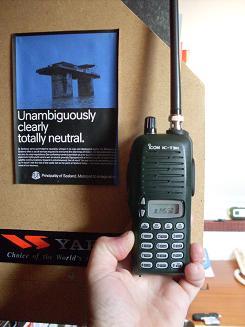

Portatile monobanda VHF robustezza a norme MIL

SPECIFICATIONS
Type: Amateur VHF transceiver
Frequency range: TX: 144-146 MHz
RX: 136-174 MHz
Mode: FM
RF Power output: Hi: 5.5 W
Lo: 0.5 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 7.2-9 VDC
Current drain: RX: ? mA
TX: ? A
Impedance: 50 ohms, BNC
Dimensions (W*H*D): 54*132*35 mm
Weight: 350 gr
Manufactured: Japan, 2001-2004 (Discontinued)
Other: 107 memories. CTCSS & DCS (DTMF and voice-scrambler option)
Allegati:
Scarica questo file (IC-T3H_user.pdf)IC-T3H - User Manual781 kB
