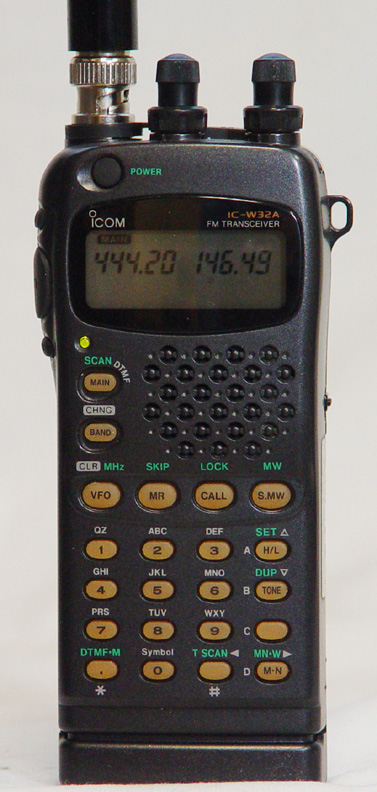

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz RX: 108-950 MHz |
| Mode: | TX: FM RX: AM/FM |
| RF Power output: | Hi: 5/5 W Lo: 0.5/0.5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 4.5-16 VDC |
| Current drain: | RX: 40-210 mA TX: Max 1.6 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 57*137*33 mm |
| Weight: | 450 gr |
| Manufactured: | Japan, 1996-2005 (Discontinued) |
| Other: | Twin RX |
| Related documents: |
 IC-W32A - manual english | 870 kB |
| IC-W32_service_manual.pdf | 18747 kB |
| IC-W32A - specifiche | 80 kB |
