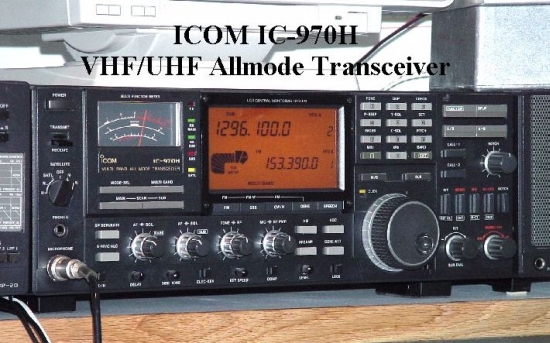

Ricetrasmettitore multimodo vhf/uhf multibanda
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | 144-146 / 430-440 MHz (Europe) 140.1-150 / 430-450 MHz (USA) (10 Hz /5 / 10 / 12.5 / 20 / 25 / 100 KHz steps) |
| Mode: | FM/SSB/CW |
| RF Power output: | FM: 45/45 W SSB/CW: 35/30 W |
| Sensitivity: | FM: 0.18 uV (12 dB SINAD) SSB/CW: 0.11 uV (10 dB S/N) |
| Selectivity: | FM: 15 KHz (-6 dB), 30 KHz (-60 dB) SSB/CW: 2.3 KHz (-6 dB), 4.2 KHz (-60 dB) CW narrow (option): 500 Hz (-6 dB), 1.3 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: 2-2.5 A TX: Max 16 A |
| Impedance: | 50 ohms |
| Dimensions (W*H*D): | 425*149*406 mm |
| Weight: | 15 Kg (without PS-35) 17.3 Kg (with PS-35) |
| Manufactured: | Japan, 1990-199x (Discontinued) |
| Other: | 23cm, 13cm, ATV and RX 50-905 MHz options. Twin RX New price 1990 in Sweden: 27900:- SEK |
 manuale d'uso (italiano) | 5536 kB |
