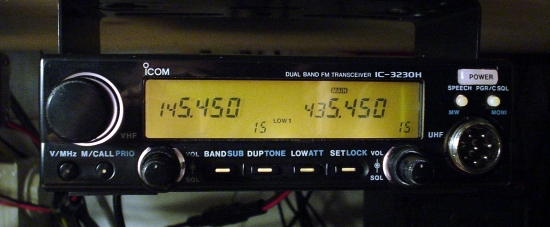

Ricetrasmettitore veicolare bibanda

Type:Amateur VHF/UHF transceiver
Frequency range:TX: 144-146 / 430-440 MHz
RX: 136-174 / 400-479 MHz
Mode:FM
RF Power output:Hi: 45/35 W
Mid: 10/10 W
Lo: 5/5 W
Receiver system:N/A
Sensitivity:N/A
Selectivity:N/A
Image rejection:N/A
Voltage:13.8 VDC
Current drain:RX: Max ? A
TX: Max 10.5 A
Impedance:50 ohms, SO-239
Dimensions (W*H*D):140*40*165 mm
Weight:1.25 Kg
Manufactured:Japan, 1992-199x (Discontinued)
Other:Twin RX
New price 1992 in Sweden: 6600:- SE



Allegati:
Scarica questo file (IC-3230H.pdf)Manuale d'istruzione4234 kB
