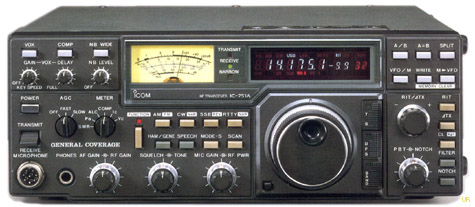

Type:Amateur HF transceiver
Frequency range:TX: 10-160 m + WARC
RX: 0.1-30 MHz
Mode:AM/FM/SSB/CW/RTTY
RF Power output:100 W (100% duty cycle)
Sensitivity:N/A
Selectivity:N/A
Image rejection:N/A
Voltage:13.8 VDC
Current drain:RX: ? mA
TX: Max 20 A
Impedance:50 ohms, SO-239
Dimensions (W*H*D):? mm
Weight:? Kg
Manufactured:Japan, 1985-1991 (Discontinued)
Other:This A-model includes some improvements from the previous
version, but it still have the battery-backed BIOS-RAM. Special
procedure to replace the battery, or the radio will die!
New price february 1986 in Sweden: 14500:- SEK
