Type: Amateur HF transceiver
Frequency range: TX: 10-160m + WARC
RX: 0.03-30 MHz
Tuning steps: ? KHz
Mode: AM/FM/SSB/CW
Channels/memory management:
Repeater shift/offset: No dedicated, use VFO A/B split instead
Power supply: 13.8 VDC
Current drain/power consumption: RX: ? mA
TX: ? A
Antenna impedance/connector: 50 ohms / 2*SO-239
Dimensions (W*H*D): 330*111*285 mm (12.99*4.37*11.22")
Weight: 8 Kg (17.64 lbs)
Other features: Built-in keyer and auto-ATU


RECEIVER SECTION
Receiver system: Triple conversion superheterodyne
1st IF: 69.01 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker: ? W at ?% distortion / ? ohms
External speaker connector:


TRANSMITTER SECTION
RF output power: AM: 10-40 W
FM: 10-100 W
SSB: 10-100 W
CW: 10-100 W
Modulation system:
Max FM deviation: ±5 KHz
Spurious emissions: Less than -50 dB
Microphone impedance/connector: 600 ohms / 8-pin


MISCELLANEOUS
Manufactured: Japan, 1993-199x (Discontinued)

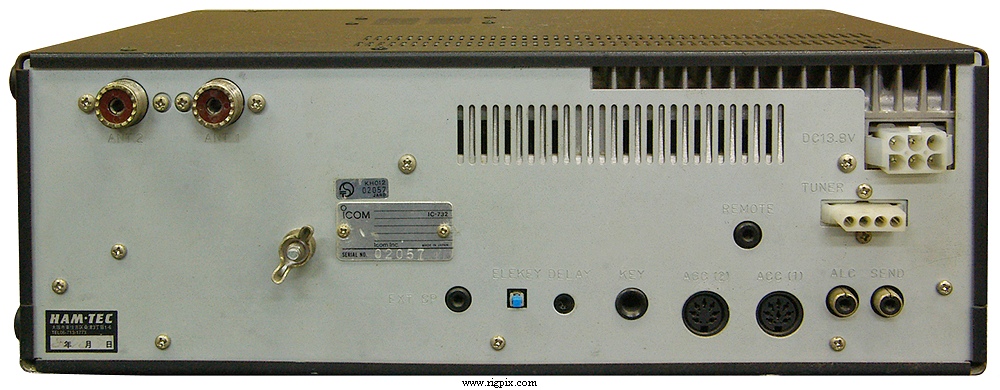

ic732 back
