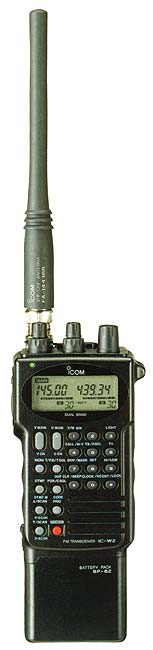

Icom IC-W2 - Portatile bibanda
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: | TX: 144-146 / 430-440 MHz RX: 136-174 / 400-470 MHz |
| Mode: | FM |
| RF Power output: | Hi: 5/5 W Lo3: 3.5/3.5 W Lo2: 1.5/1.5 W Lo1: 0.5/0.5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 6-16 VDC |
| Current drain: | RX: 20-200 mA TX: Max 1.8 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 54*154*36 mm |
| Weight: | 450 gr (with BP-83) |
| Manufactured: | Japan, 1991-199x (Discontinued) |
| Other: | Twin RX New price 1991 in Sweden: 4450:- SEK |
 ic-w2ae_schematics.pdf | 502 kB |
| IC-W2_service_manual.pdf | 10756 kB |
| IC-W2_user_manual.PDF | 8005 kB |
