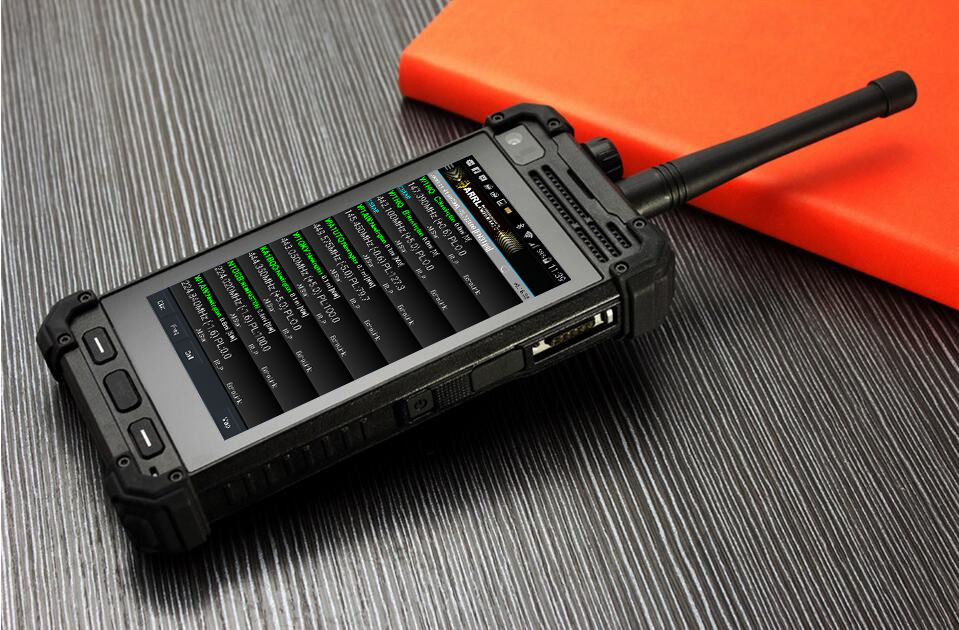

Network Android radio - Ricetrasmettitore VHF o UHF con incluso uno smarpthone android 4G/LTE - FM Analogico e digitale DMR - 4 Watt - la possibilità di connessione alla rete 4G permette di rimanere nel qso anche se il ponte radio non è raggiungibile. Prodotto interessante, di seguito le caratteristiche pervenuteci dal produttore.
This network radio is fully compatible with the International Radio Network (IRN)
2G: GSM850/900/1800/1900; 3G:WCDMA850/900/1900/2100
LTE-FDD:B1/B3/B5/B7/B17/B20
LTE-TDD:B38/B39/B40/B41
TD_SCDMA:A/F(B34/B39) EVDO:BC0
There are Two Version For this phone also with two version UHF Frequency
DMR UHF 400 to 450=Digital DMR +Analog UHF Walkie Talkie (400~450mhz)
DMR UHF 440 to 480=Digital DMR +Analog UHF Walkie Talkie (440~480mhz)
Specification
| Walkie talkie | 4Watts DMR+UHF:400-450mhz Or 440-480mhz(Optional) |
| Selling points | LTE 4G smartphone,IP67 rugged,DMR+UHF,POC |
| Display | 4.0 inch, |
| Touch panel | 5 points capacitive screen,support rainwater operation,IPS. |
| Glove wearing touch | Support |
| Resolution | 600*1136 TFT LCM |
| Sim | Dual SIM,Dual standby |
| Network | GSM, WCDMA, EVDO,TD-SCDMA,TDD/FDD-LTE |
| Data connection | LTE CAT4/HSPA/TD-SCDMA/1xEV-DO/EDGE/GPRS |
| Band | 2G: GSM850/900/1800/1900; 3G:WCDMA850/900/1900/2100 LTE-FDD:B1/B3/B5/B7/B17/B20 LTE-TDD:B38/B39/B40/B41 TD_SCDMA:A/F(B34/B39) EVDO:BC0 |
| Speed | LTE :CAT4 ( 150Mbps Downlink 50mbps Uplink) WCDMA: Category 24 HSDPA category 7 HSUPA TD_SCDMA: category 14(downlink) category 6(uplink) GSM: Class 12 GPRS, Edge |
| OS | Android 6.0 |
| CPU | MTK6735,Quad core,1.3–1.5GHz |
| Memory | 16GB ROM+2GB RAM |
| Micro SD card | Support up to 64GB |
| Battery | 4.35V,4700mAH,removable battery |
| Colour | Black |
| Size | 140mm×62mm×31mm |
| Weight | 300 gram for handset,350gram with battery,450g whole set. |
| SOS | Yes |
| Channel knob | yes,easy to operate |
| Volume knob | yes,easy to operate |
| PTT | Yes,Push-to-Talk over two way radio |
| POC | Yes,Push-to-Talk over Cellular/Wifi |
| programmable key | Support,Customer can customize the shortcut key for special function purpose by software |
| GNSS | GPS/BEIDOU/GLONASS/GALILEO |
| charge dock | Optional(25usd more than standard version) |
| quick charge | support 2A quick charge |
| Clip | yes, |
| Micphone | yes,dual mic. |
| IP Class | IP67 |
| Sensors | Gravity,Gyro,Distance sensor,Light sensor,3D accelerator,Pressure sensor. |
| Finger print | Optional |
| FM | yes |
| NFC | yes, 13.56MHZ |
| Speaker | 2Watts |
| Storage temp. | from +70 to -20 |
| Working temp. | from +60 to -20 |
| Others | |
| Camera | Front camera:5mega pixels rear camera:13mega pixels |
| Picture size | up to 4096*3072 pixels |
| Flash LED/Torch | 1 flash led, 200 lumina |
| Video record | 1920*1080 recording,30fps |
| Data | |
| WLAN | WIFI 802.11 a/b/g/n, 2.4G/5.8G |
| data port | USB 2.0 |
| USB port | Runbo 6Pin port,2A charge,support OTG. |
| Bluetooth | BT4.0 |
| Accessories | |
| Battery x1 | |
| Walkie talkie antenna x1 | |
| Data cable x1 | |
| Charger Adapter x1 | |
| Manual x1 | |
