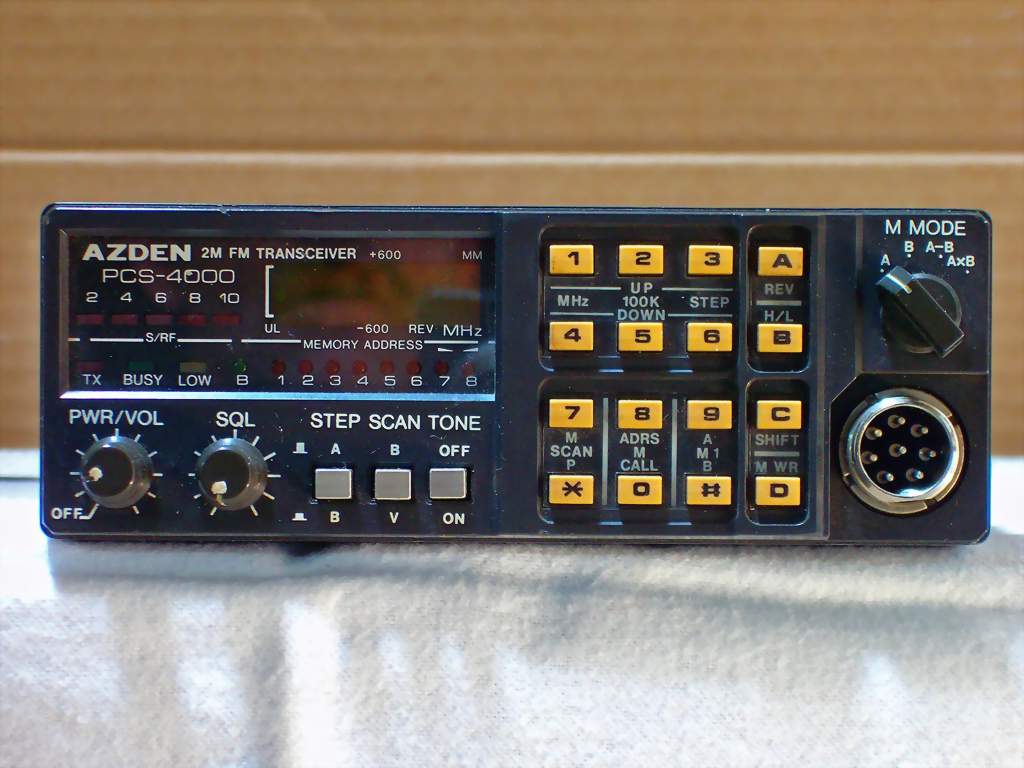

RTX VHF PCS-4000
| Frequency range: | 144-146 MHz (Europe) 142-150 MHz (USA) |
| Mode: | FM (Max 16 KHz BW) |
| RF Power output: | Hi: 25 W Lo: 5 W |
| Receiver system: | Dual conversion superheterodyne 1st IF: 16.9 MHz 2nd IF: 455 KHz |
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB), 30 KHz (-60 dB) |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC +/-15% |
| Current drain: | RX: Max 600 mA TX: Max 6 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 140*50*172 mm |
| Weight: | 1.3 Kg |
| Manufactured: | 1983-198x (Discontinued) |
| Other: | 16 memories. CTCSS/PL option |
 Azden_PCS4000_user_manual.pdf | 2467 kB |
