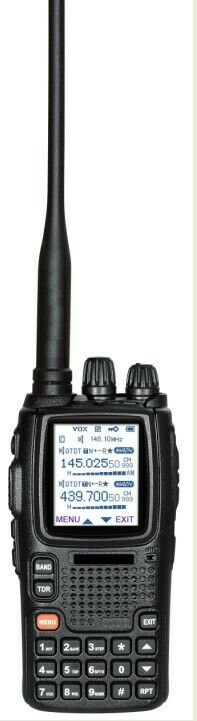

WOUXUN KG-UV9P - RTX BIBANDA  FULL DUPLEX e CROSS BAND REPEATER 144/430 MHZ RX 76-985  MHZ

- FUNZIONE CROSS BAND REPEATER - 7 Watts - STEP 8.33 KHZ

Evoluzione del famoso e vendutissimo KG-UV9D PLUS, un restayling del

Qui il manuale



Dual Band Transmission

  • 144-148MHz VHF (FM TX)
  • 420-450MHz UHF (FM TX)


7 Band Reception

  • 76-108MHz (FM Radio)
  • 108-136MHz (AM RX)
  • 136-180MHz (FM RX)
  • 230-250MHz (FM RX)
  • 350-400MHz (FM RX)
  • 400-512MHz (FM RX)
  • 700-985MHz (FM RX)


Like the KG-UV9D Plus, the KG-UV9P has multiple levels of operation to maximize your communications over the airwaves. It features true dual band reception, which means you can receive and hear two signals simultaneously on the same or different bands. You can also transmit on one band while you receive on the other at the same time. It also has cross-band repeat, just like the KG-UV9D Plus!

But its multi-function operation doesn't end there. The KG-UV9P has multiple scan capabilites, as well. Priority scan, channel group scan, these are just a given. CTCSS/DCS scanning is a plus. Want a scan feature that's really exciting? With it's dual receive, the KG-UV9P can scan two bands at the same time. Now, that's multi-functional!

The KG-UV9P also keeps the famous Wouxun multi-display. First introduced with the popular KG-UV8D, the large, color screen is also a prime feature of the KG-UV9P, and with some notable improvements. Of course, there is still plenty of room to display all the information needed to operate a multi-function radio on both bands at the same time. Now the display is also adjustable, with five levels of brightness. Customize the settings for your viewing comfort while conserving battery power as needed. With the KG-UV9P in your hand, you are in control, and with more power!

High wattage handheld radios require more battery power, and the 9P has it. The KG-UV9P is powered by a 7.4V 3200mAh (23.68Wh) battery pack to handle the extra wattage and maximize uptime!

. As for control, check out Lock Mode. You can choose to lock only the keypad, lock the keypad and the encoders, lock the keypad and the PTT, or lock it all. It's no longer all or nothing. Multiple lock options let you decide how your KG-UV9P radio can be accessed, keeping you in control.

The KG-UV9P also includes programmable side keys, sub-frequency transmission setting, Channel Name edit and display, Caller ID display, 76-108Mhz FM radio, SOS function, remote alarm, single-tone pulse frequency, reverse frequency, low voltage voice prompt, VOX (Voice Operated Transmit) for hands-free operation and a high illumination flashlight. And yes, like its predecessor, KG UV9D (Plus) also has a stopwatch! And yes, like the 9D Plus, the KG-UV9P has a stopwatch!

The Wouxun KG-UV9P comes with a powerful 3200mAh Li-Ion battery pack, belt clip, high gain antenna, stubby antenna, wrist strap, desktop charger, AC cord, owner's manual and a one year manufacturer warranty from Wouxun.



Optional Programming Cable

For your convenience, an optional USB programming cable is available to program the Wouxun KG-UV9P from a computer.

NOTE: When you purchase this programming cable, we will include the FREE USB cable driver and programming software on CD.

Wouxun KG-UV9P Features

  • 999 Memory Channels
  • Dual Band Transmit
  • 137-174MHz VHF Frequencies RX/144-148MHz VHF Frequencies TX
  • 400-512MHz UHF Frequencies RX/ 420-450MHz UHF Frequencies TX
  • 7-Band Receive
  • Cross Band Repeater
  • Repeater Capable
  • 5W UHF/7W VHF Transmit Power
  • Li-Ion Battery Pack
  • Rechargeable Battery Included
  • Battery Charger
  • FM Radio
  • SOS Feature
  • Memory Channel
  • Simultaneous Scanning on Twin Bands
  • Priority Scan
  • Dual Receive
  • Busy Channel Lockout
  • Duplex Work Mode
  • Reverse Frequency Function
  • CTCSS/DCS Tones
  • CTCSS/DCS Tone Scan
  • Large Color Backlit LCD Display w/5 Level Brightness
  • Channel Name Edit and Display
  • Battery Meter
  • Low Battery Alert
  • Power Saver
  • Timeout Timer
  • VOX
  • Multiple Lock Modes (Keypad, Encoders/PTT/All
  • English Voice Prompts
  • Drop-In Charge Capable
  • Audio Accessory Connector
  • PC Programmable (Requires Optional Cable)
  • LED Flashlight
  • Stopwatch
  • DTMF Encode/Decode
  • Reset
  • One Year Manufacturer Warranty

Included with the Wouxun KG-UV9P

  • Wouxun KG-UV9P Two Way Radio
  • Li-Ion Battery Pack
  • Multi-Band High Gain Antenna
  • Dual Band Stubby Antenna
  • Belt Clip
  • Wrist Strap
  • Charger Tray
  • AC Adapter
  • Owners Manual

Wouxun KG-UV9P Specifications

  • Dimensions: 124.5mm × 61.49mm × 33.88mm
  • Weight: 490g
  • Antenna connector type: SMA Female (Standard)
