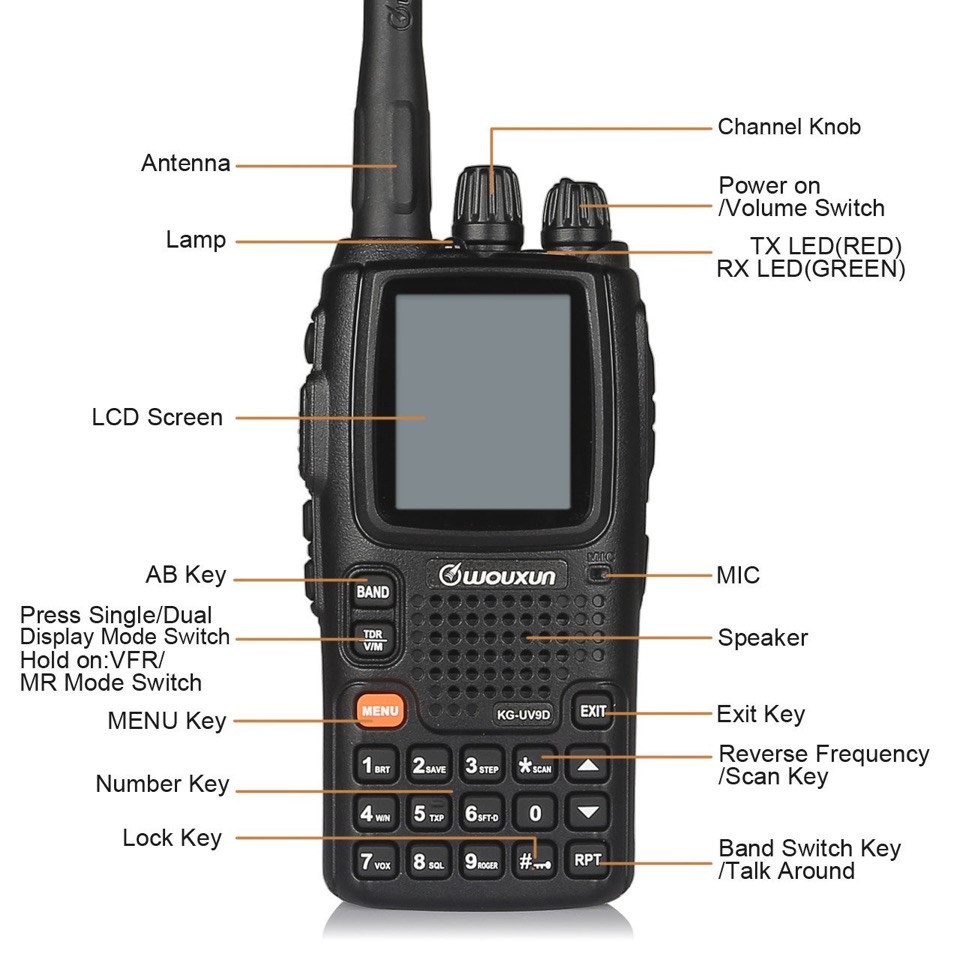

WOUXUN KG-UV9D RTX BIBANDA 144/430 MHZ RX 76-985 MHZ
La versione Wouxun KG-UV9D Plus aggiunge la funzione di trasponder (cross band repeat).
Dual Band Transmission
- 144-148MHz VHF (FM TX)
- 420-450MHz UHF (FM TX)
7 Band Reception
- 76-108MHz (FM Radio)
- 108-136MHz (AM RX)
- 136-180MHz (FM RX)
- 230-250MHz (FM RX)
- 350-400MHz (FM RX)
- 400-512MHz (FM RX)
- 700-985MHz (FM RX)
------------------------------------
2. Dual Bands Duplex, Separate Work
a. RX on the same/different bands of A&B areas at the same time
b. TX on one area while RX on the other area simultaneously
3. DTMF Encoding/Decoding
4. All Calls, Group Calls and Selective Calls
5. Remote Control: Stun, Kill, Monitor and Inspection
6. CTCSS/DCS Scan
7. Progammable Non-Standard CTCSS/DCS
8. 999 Memory Channels
9. Multi Scan Modes: Programmable Scanned Frequency Range (only available in Frequency Mode), Channel Groups Scan (only available in Channel Mode)
10. VOX

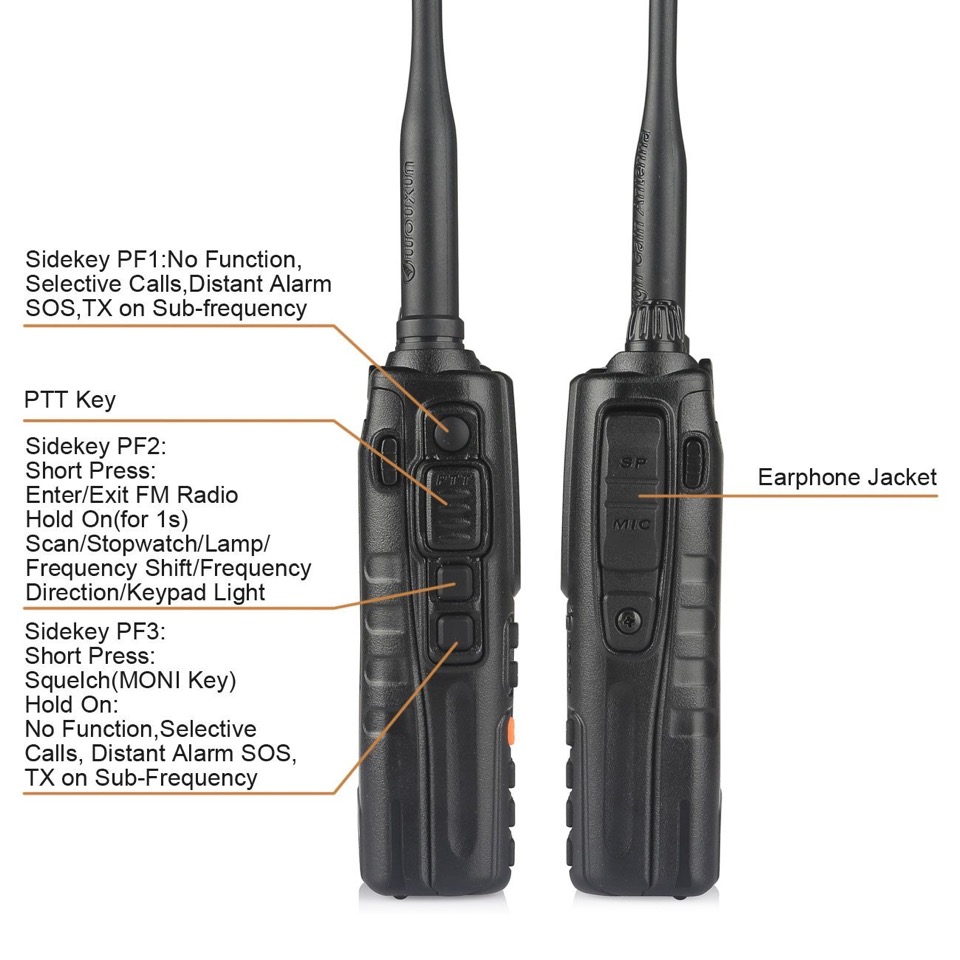

11. Multi Functions Programmable for Side Keys, Programmable Transmission Function on Sub-Frequency (Side Key Function Programmable)
12. Channel Name Edit
13. Priority Scan, Priority Channel Setting
14. Dual Band Simultaneous Scan
15. Multi Power Save Modes
16. Auto Power-Off Timer (APO)
17. Three Output Power Levels
UHF: H 4W, M 2W, L 1W
VHF: H 5W, M 2W, L 1W
18. Multi Single-Tone Pulse
(1750Hz,2100Hz,1000Hz,1450Hz)
19. Multi Keypad lock Modes
20. PTT ID
21. Wide/Narrow Bandwidth Selection
22. Backlight Brightness Selection
23. Reverse Frequency
24. Stopwatch
Specification:
| Integral Part | |||
| Step | 2.5K/5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz | ||
| Channel Number | 999 | ||
| Work Mode | F2D/F3E | ||
| Operating Temperature | -20 degrees centigrade+40 degrees centigrade | ||
| Voltage | 7.4VDC | ||
| Antenna Impedance | 50Ω | ||
| Weight | 490g | ||
| Size | 124.5X61.49X33.88 (mm) | ||
| Receiver | |||
| Wide | Narrow | ||
| Adjacent Channel Selectivity | ≤70dB | ≤60dB | |
| Inter Modulation | ≤65dB | ≤60dB | |
| Spurious Response | ≤70dB | ≤70dB | |
| Audio Response | +1-3dB(0.33KHz) | +1-3dB(0.3-3KHz) | |
| Signal to Noise Ratio | ≥45dB | ≥40dB | |
| Audio Distortion | ≤5% | ||
| Audio Power | ≤500mW | ||
| Sensitivity | 108-136MHz(AM) -106.0dbm SN 13dB 136-180MHz -119.0dbm SINAD 13dB 230-250MHz -116.0dbm SINAD 13dB 350-400MHz -119.0dbm SINAD 13dB 400-512MHz -119.0dbm SINAD 13dB 700-986MHz -96.0dbm SINAD 12dB |
||
| Transmitter | |||
| Wide | Narrow | ||
| Type of Modulation | 16K F3E | 11K F3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Spurious Response | ≥60dB | ≥60dB | |
| Audio Response | +1-3dB(0.3-3KHz) | +1-3dB(0.3-3KHz) | |
| Max Frequency Deviation | ±5KHz | ±2.5KHz | |
| Frequency Stability | ±2.5ppm | ||
| Audio Distortion | ≤5% | ||
| Output Power | VHF H:5W, M:2W, L:1W UHF H:4W, M:2W, L:1W |
||
Menù
| 01 | ABR:s | ➜ | ABR:s | Auto Backlight Time |
| 02 | SAVE | ➜ | SAVE | Power Save Mode |
| 03 | STEP | ➜ | STEP | Step Frequency |
| 04 | W/N | ➜ | W/N | Bandwidth Selection |
| 05 | TXP | ➜ | TXP | Transmit Power Selection |
| 06 | SFT-D | ➜ | SFT-D | Frequency Shift Direction |
| 07 | VOX | ➜ | VOX | VOX |
| 08 | SQL-LE | ➜ | SQL-LE | Squelch Level |
| 09 | ROGER | ➜ | ROGER | Begin/End Transmit Prompt |
| 10 | TOT:s | ➜ | TOT:s | Timeout Timer |
| 11 | TOA:s | ➜ | TOA:s | Transmit Overtime Alarm |
| 12 | VOICE-SW | ➜ | VOICE-SW | Voice Switch |
| 13 | BEEP | ➜ | BEEP | Beep Prompt |
| 14 | MENULANGE | ➜ | MENULANGE | Menu Language |
| 15 | BCL | ➜ | BCL | Busy Channel Lockout |
| 16 | Rx-CTC | ➜ | Rx-CTC | Receiving CTCSS |
| 17 | Tx-CTC | ➜ | Tx-CTC | Transmitting CTCSS |
| 18 | Rx-DCS | ➜ | Rx-DCS | Receiving DCS |
| 19 | Tx-DCS | ➜ | Tx-DCS | Transmitting DCS |
| 20 | SC-REV | ➜ | SC-REV | Scan Mode |
| 21 | SP-MUTE | ➜ | SP-MUTE | Mute Settings |
| 22 | DTMF-ST | ➜ | DTMF-ST | DTMF Sidetone Settings |
| 23 | PTT_ID | ➜ | PTT_ID | Caller ID Transmission Mode |
| 24 | ID-EDIT | ➜ | ID-EDIT | Editing Caller ID |
| 25 | ID-DLY:ms | ➜ | ID-DLY:ms | Caller ID TX Delay |
| 26 | RING:s | ➜ | RING:s | Ring Time |
| 27 | ABR-LV | ➜ | ABR-LV | Backlight Selection |
| 28 | OFFSET | ➜ | OFFSET | Offset Frequency |
| 29 | CH-NAME | ➜ | CH-NAME | Channel Name Edit |
| 30 | MEM-CH | ➜ | MEM-CH | Channel Memory |
| 31 | DEL-CH | ➜ | DEL-CH | Channel Delete |
| 32 | PRI-CH | ➜ | PRI-CH | Priority Channel |
| 33 | PRI-SCN | ➜ | PRI-SCN | Priority Channel Scan |
| 34 | AUTOLOCK | ➜ | AUTOLOCK | Keypad Auto Lock |
| 35 | LOCKMODE | ➜ | LOCKMODE | Keypad Lock Mode |
| 36 | S-TONE | ➜ | S-TONE | Single Tone |
| 37 | VOX-DLY:s | ➜ | VOX-DLY:s | VOX Delay |
| 38 | SC-QT | ➜ | SC-QT | Saving Scan Mode |
| 39 | APO-TMR | ➜ | APO-TMR | Auto Power Off |
| 40 | PONMSG | ➜ | PONMSG | Power On Message |
| 41 | RPT-RCT | Repeater Receipt Tone | BLCDSW | Backlight Standby Switch |
| 42 | SCN-ADD | Scan Add | BLEDSW | Backlight Prompt Switch |
| 43 | SCN-GP | Scan Channel Group NO. | TYPE-SET | Repeat Setting |
| 44 | SCN-MODE | Scan Mode | RPT-SPK | Repeat Speaker |
| 45 | SCN-CD | CTCSS/DCS Scanning | RPT-PTT | Repeat PTT |
| 46 | CALL-ID | Call Group ID | RPT-KPT | Repeat Hold Time |
| 47 | AUTO-AM | Auto AM | RPT-RCT | Repeater Receipt Tone |
| 48 | AM-SW | AM Switch | SCAN-ADD | Scan Add |
| 49 | PF1-DEF | PF1 Function Program | SCN-GP | Scan Channel Group NO. |
| 50 | PF2-DEF | PF2 Function Program | SCN-MODE | Scan Mode |
| 51 | PF3-DEF | PF3 Function Program | SCAN-CD | Repeat PTT |
| 52 | VOLTAGE | Voltage Check | CALL-ID | Call Group ID |
| 53 | QT-SW | CTCSS/DCS Scan Determine Switch |
AUTO-AM | Auto AM |
| 54 | S-MUTE | Sub-Frequency Mute | AM-SW | AM Switch |
| 55 | RESET | Reset Setting | PF1-DEF | PF1 Function Program |
| 56 | - | - | PF2-DEF | PF2 Function Program |
| 57 | - | - | PF3-DEF | PF3 Function Program |
| 58 | - | - | VOLTAGE | Voltage Check |
| 59 | - | - | QT-SW | CTCSS/DCS Scan Determine Switch |
| 60 | - | - | S-MUTE | Sub-Frequency Mute |
| 61 | - | - | RESET | Reset Setting |
 kg-uv9d_user_manual.pdf | 14146 kB |
